AXIAL FLOW FAN-
AXIAL FLOW FANS, BIFURCATED FANS, MAN COOLER FAN,
PRODUCT COOLING FAN, WALL MOUNT FAN-
We Provide effective air supply or exhaust through a ducted system requiring high static pressure. Can be connected to a Hood and Duct System for effective remote exhaust or filtered ventilation air supply system
Features
- Duct fans in series for tunnel ventilation requiring static pressure up to 7-8″ MMWC.
- Different blades combination for low noise at higher RPM
- Being electrically connected-Ready to start
- Sweep Diameter Range: 310 mm to 1200 mm (12° to 48″)
- Airflow Range : 1000 to 40000 CFM
- static Pressure Range : 0 to 75 mmWC (0° to 3° mmWC)
- Motor Rating Range : 0.5 HP to 20 HP
- Drive : Direct / V-belt
- MOC : Mild Steel and Stainless Steel
- RPM : 720 to 1440 RPM
Dual Stage Blower-
KALSI INDUSTRIES manufactures multi-stage blowers for use where relatively high pressures at low airflow rates are required. The gas or air passes through two or more impellers, being channelled from one impeller’s outlet to another’s inlet. The impellers are radial-bladed or backward curved, depending on the application and duty required.
DWDI FANS-
DWDI – DOUBLE WIDTH, DOUBLE INLET-
These are employed for air containing dust or particles, fiber, flakes & having higher temperatures than ambient. Usually offered in single inlet styled fans are moderately efficient & useful for Creating Draft in Systems. Impellers are Radial Blade or backward inclined or Curved blade type having flat or Airfoil designs, with Shrouded or open constructions. Split housings facilitate wheel removal without disturbing connecting ductwork.
Operating Range-
Air flow (capacity) range upto : 300000 CMH
Static Pressure Range : 80 mm WC
Motor up to 100 KW
Max Temperature: 30 Deg To 100 Deg

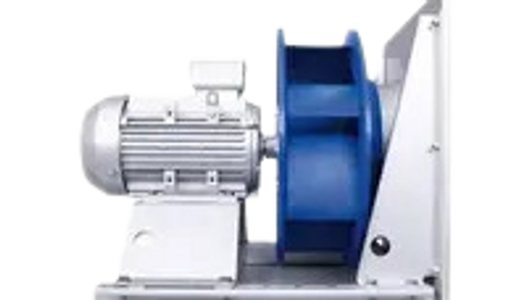

PLUG FANS-
Backward-inclined centrifugal wheels are designed to provide efficient and reliable operation for commercial and industrial applications. They are suitable for supply, exhaust, or recirculation systems. In most instances, plug fans are unhoused and rely on the plenum space around the wheel to direct airflow as required in the system. This style of fan is designed with the motor, bearings, and drives out of the airstream, which allows for use in clean, contaminated, or high temperature systems.
Operating Range-
- Volumetric flow capacity up to 150000 m3 /hr
- Maximum pressures of 150 mm wc
- Maximum operating temperature of 800°C
- Belt or direct drive
- Horizontal or vertical mounting
Applications-
- Heating and air conditioning systems
- High temperature processes such as ovens, dryers and kilns
- Spray booth evaporators and textile dust collectors
- Air curtains • Custom air handlers • Wash systems
INLINE DUCT FANS-
Inline fans, centrifugal duct fans, Axial flow fan are the ideal air movers for residential, commercial and industrial applications. The quiet and efficient airfoil impeller is capable of developing significant pressure, and the in-line configuration simplifies installation. The unique motor design, combined with high quality materials and workmanship, results in a truly versatile fan.
The in-line configuration of these fans simplifies installation. We also offer these fans as per the customized designs provided by the clients .
LOW PRESSURE BLOWERS-
Generally Used As Ventilation Fans/ Gas Exhaust Fans-
Single or double inlet styled fans is very efficient & useful for fresh air supply, ventilation. Impellers are Backward Curved or Backward or forward curved type fans are generally used for clean air duty.
Operating Range-
- Air flow (capacity) up to 200000 m3/hr
- Motor Kw up to 150
- Static Pressure Range up to 150 mm WC
- Material of Construction Casing :Mild Steel, Stainless
- Material of Construction Impeller: Mild Steel,Stainless Steel, Aluminium
- RPM generally use Max. up to 1450
- Low Noise Level
Applications-
A low pressure blower is used if the focus is on high air flows and very low pressure. Low pressure blower for industrial applications generates pressures up to 150 mm WC.
MEDIUM PRESSURE BLOWER
Generally Used As Exhausters.
These are employed for air containing dust or particles, fibre , flakes & having higher temperatures than ambient. Usually offered in single inlet styled fans are moderately efficient & useful for Creating Draft in Systems. Impellers are Radial Blade or backward inclined or Curved blade type having flat or Airfoil designs, with Shrouded or open constructions. Split housings facilitate wheel removal without disturbing connecting ductwork.
Operating Range
Air flow up to 40000 CMH
Motor up to 150 Kw
Static Pressure Range : 100 mm WC to 1000 mm WC
Material Of Construction : Mild Steel, + FRP
Material of Construction Impeller: Mild Steel, + FRP
RPM variation up to 800 To 3600 Rpm
Welding Fume Extraction System manufacturers, Ash Handling Systems Manufacturers, Dust Collector manufacturers
HIGH PRESSURE BLOWERS-
Generally Used For Combustion And Very High Resistance-
High Pressure Blower offered by us, is made by using premium quality raw materials procured from reliable and genuine vendors. Our company is offering these blowers to our customers at very reasonable price. For the convenience of customers, we are also providing customized options to our customers.
Operating Range-
- Air flow (capacity) range : 100 CMH to 30000 CMH
- Static Pressure Range : 600 mm WC to 1800 mm WC
- RPM generally 800 To 3600 Rpm
- Motor up to 150 KW
- Material Of Construction : Mild Steel, Stainless Steel
PP ERP MS FRP BLOWERS-
PP-FRP Blowers are mostly resistant to weathering, corrosive fumes and gases etc. they are specially designed to for laboratory Ventilation, laboratories to handle highly corrosive gases & fumes. They have been proven suitable for pickling plants and other refining processes, electroplating and pharmaceutical Chemical Industries etc. The fans are also available as per the client requirement. They are available in Direct or “V” belt driven Types.
MS-FRP Centrifugal blowers in capacity range from 500 CMH to 6000 CMH and static heads ranging from 50 mm to 750 mm water column.Our range of pollution control equipment’s are Blowers, Wet Scrubbers, Fume extraction systems, Venturing Scrubbers, fume stacks etc.Material of Construction: PPFRP, HDPEFRP, PP Blowers.
Our Blowers are high in performance & widely used in Fume extraction systems, scrubbing systems.
Operating Range–
Air flow (capacity) range upto : As Per Client Requirement
Static Pressure Range : 750 mm WC
Material Of Construction : PP-FRP, MS-FRP
SQI BLOWERS-
Typical applications include conveying, induced draft, industrial ovens, and similar high temperature installations to 300°C. For greater safety in explosive environments, spark resistant construction is offered. Lint-free construction, in which housing hardware is reversed to limit obstructions in the airstream, minimizes lint build-up.
Operating Range-
Air flow (capacity) range : 100 CMH to 15000 CMH
Static Pressure Range : 150 mm WC to 500 mm WC
RPM variation : 1450 – 3000
Motor KW : up to 25
Material Of Construction : Mild Steel, Stainless Steel
Features-
Rugged steel Housing, Removable bearing brackets, Adjustable motor bases, Flanged outlet, Precision shafts, Four–way gusset, Typical Applications, Material conveying, Dust collection, Oven exhaust, Dryer exhaust
